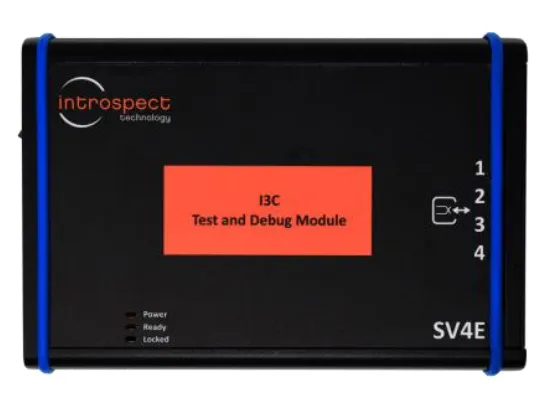

The SV4E-I3C is an all-inclusive solution for I3C-based sensor interface development, test, and programming.  Containing three instruments in one, this tool can act as a protocol exerciser for testing and debugging I3C slave  or master devices. It can also act as a complete protocol analyzer with fine-resolution timing analysis and a full  suite of conformance test capability. Finally, it contains a deep vector memory, which allows it to be used as a  general purpose I3C device programmer. All three categories of instrumentation features are accessible  simultaneously and in real-time using the award winning Introspect ESP Software.

K E Y F E A T U R E S :

• Device roles: able to configure multiple devices  with different roles (main master, secondary  master, slave) concurrently

• Device instances: integrates 4 parallel devices,  each with its own independent protocol stack

• Timing resolution: 5 ns resolution on delay  generation (exerciser) and time-stamp (analyzer)  logic

• Protocol analysis: easily trigger on CCC’s and  patterns for private and device to device  communication, IBI, and hot-join

K E Y B E N E F I T S :

• Complete debugging: simultaneous protocol  exercising and analysis enables complete  debugging of individual sensor/controller devices  or entire multi-device systems

• Flexible: solution featuring I3C and I3C Basic  protocol support with real-time voltage and  timing controls

• Automated: scripting capability ideal for debug  tasks, verification and full‐fledged production  screening of devices and system boards
